Dual-Mode Operation

KLSTR.nano acts as a communication bridge between KLSTR.one and the host CPU. This setup requires minimal software effort on the host fixture side because plain RDM+DMX is used as a communication protocol.

When to use dual mode

Dual mode is the right choice when:

• Your fixture needs Ethernet connectivity (Art-Net/sACN) and compact internal integration
• You want full RDM support while keeping the fixture’s internal module small
• The KLSTR.nano is embedded on the fixture PCB

Architecture

Ethernet ──► KLSTR.one ──► DMX_LAN ──► KLSTR.nano ──► Host CPU               │                           │            Art-Net                    DMX decode            sACN                       & control            RDM

The KLSTR.one converts network protocols to DMX. The KLSTR.nano receives this DMX via the DMX_LAN interface and forwards it to the host fixture’s RS485 transceiver. The KLSTR.nano also maintains the external DMX daisy-chain (DMX_IN/DMX_OUT) independently.

Connection blocks

KLSTR.nano — 6 connection blocks

The KLSTR.nano requires 6 connection blocks to work properly when used in dual mode with a KLSTR.one:

1. DMX IN
2. DMX OUT
3. DMX LAN
4. POWER — Powered via pin 17 with 5V0
5. KLSTR.one Interface — USB, heartbeat signals, reset signals
6. Serial Wire Debug

KLSTR.one — 5 connection blocks

The KLSTR.one requires 5 connection blocks to work properly when used in dual mode with a KLSTR.nano:

1. Ethernet A–B + Ethernet Bypass Relay Circuit
2. Ethernet C
3. POWER — Powered via pins 84–89 with 3V3. Bypass relays powered with 5V0.
4. KLSTR.nano Interface — USB, heartbeat signals, reset signals
5. Console Port

Wiring

1. Connect DMX_LAN between the two modules

   KLSTR.one	Signal	KLSTR.nano Pin
   DMX LAN A+	RS485 A+	Pin 23 (DMX_LAN_A)
   DMX LAN B−	RS485 B−	Pin 22 (DMX_LAN_B)
   GND	Ground	Pin 21 (GND)

   Route as a 120 Ω differential pair. Keep the connection as short as possible — DMX_LAN has no external line protection.

2. Connect KLSTR.one/KLSTR.nano interface

   The interface between the two modules includes USB, heartbeat signals, and reset signals:

   Signal	KLSTR.nano Pin	Description
   Heartbeat KLSTR.one	Pin 35 (PC2)	KLSTR.one alive signal
   Heartbeat KLSTR.nano	Pin 32 (PB8)	KLSTR.nano alive signal
   Reset KLSTR.nano	Pin 34 (NRESET)	Active-low reset for KLSTR.nano
   Reset KLSTR.one	Pin 33 (PB9)	Active-low reset for KLSTR.one
   USB_N	Pin 14	USB port negative
   USB_P	Pin 15	USB port positive

3. Power each module

   • KLSTR.one: 3.3 V DC via pins 84–89. Bypass relays powered with 5V0.
   • KLSTR.nano: Powered via pin 17 with 5V0.

4. Connect Serial Wire Debug (KLSTR.nano)

   KLSTR.nano Pin	Label	Function
   16	SWDIO	Programming
   24	SWCLK	Programming
   30	PB3_SWO	Programming

5. Connect Console Port (KLSTR.one)

   KLSTR.one Pin	Label	Function
   108	GND	Ground
   109	TXD1	UART Lite TX Data
   110	RXD1	UART Lite RX Data

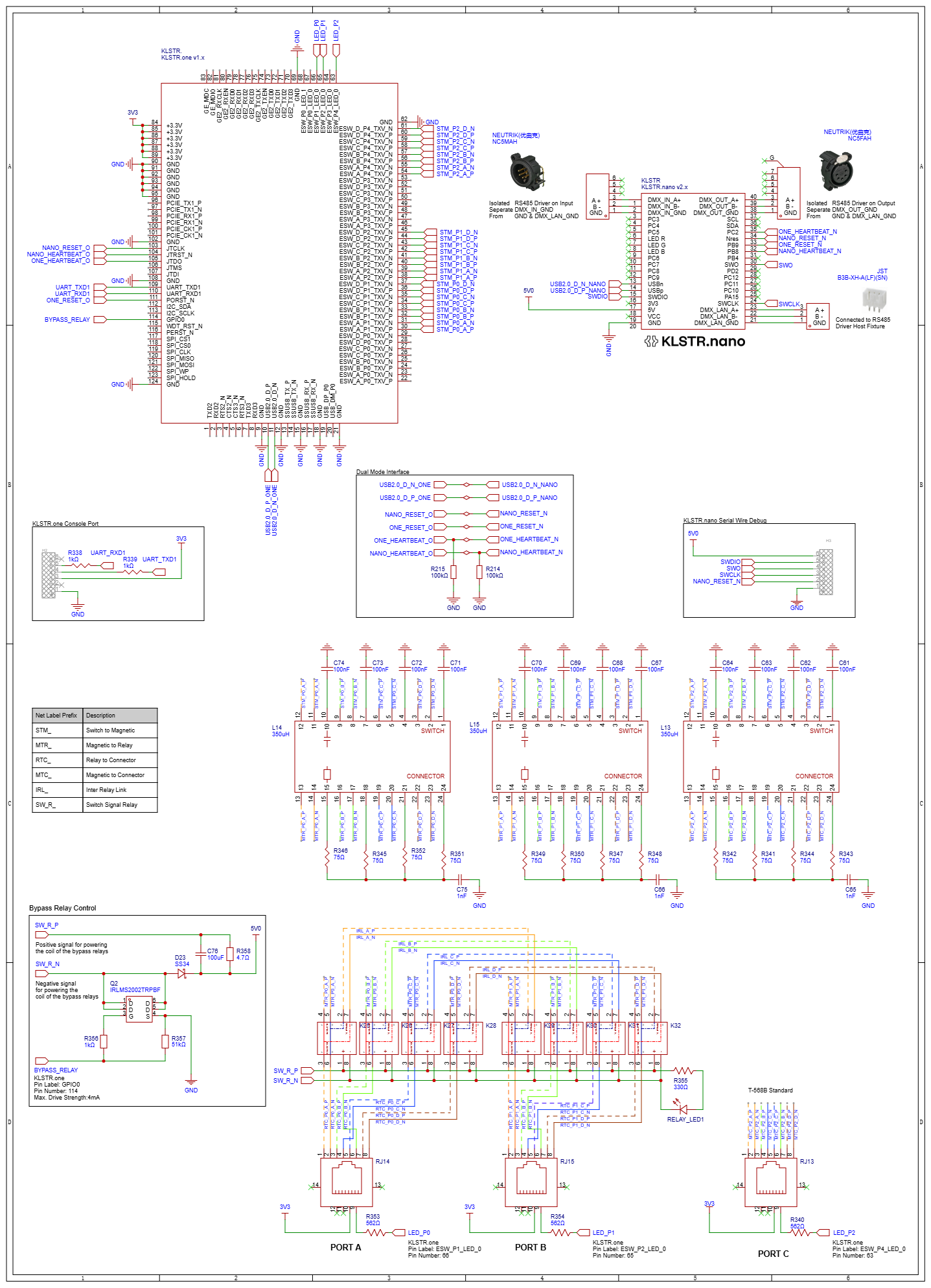

Dual mode connection schematic

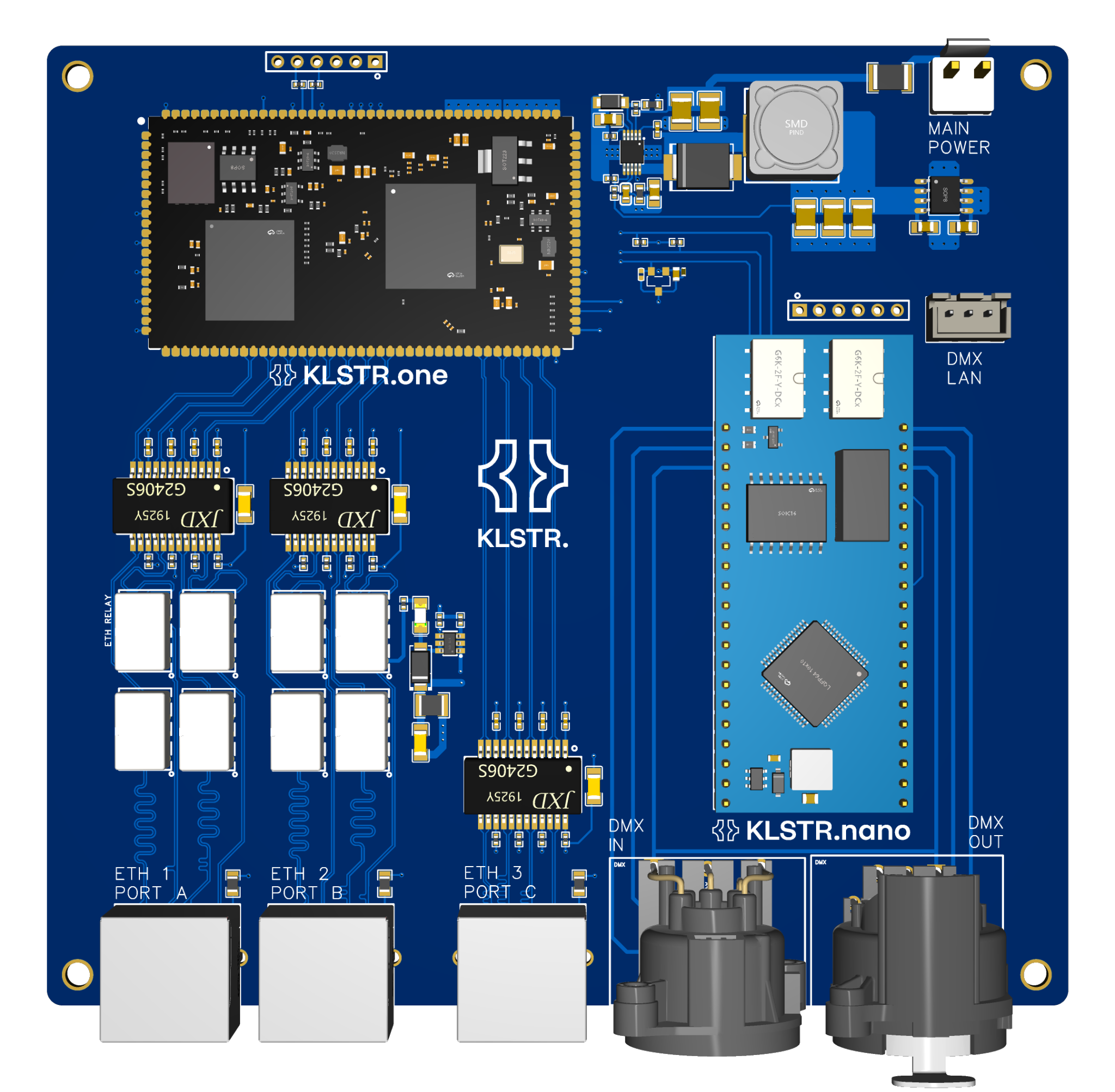

Reference board — top view

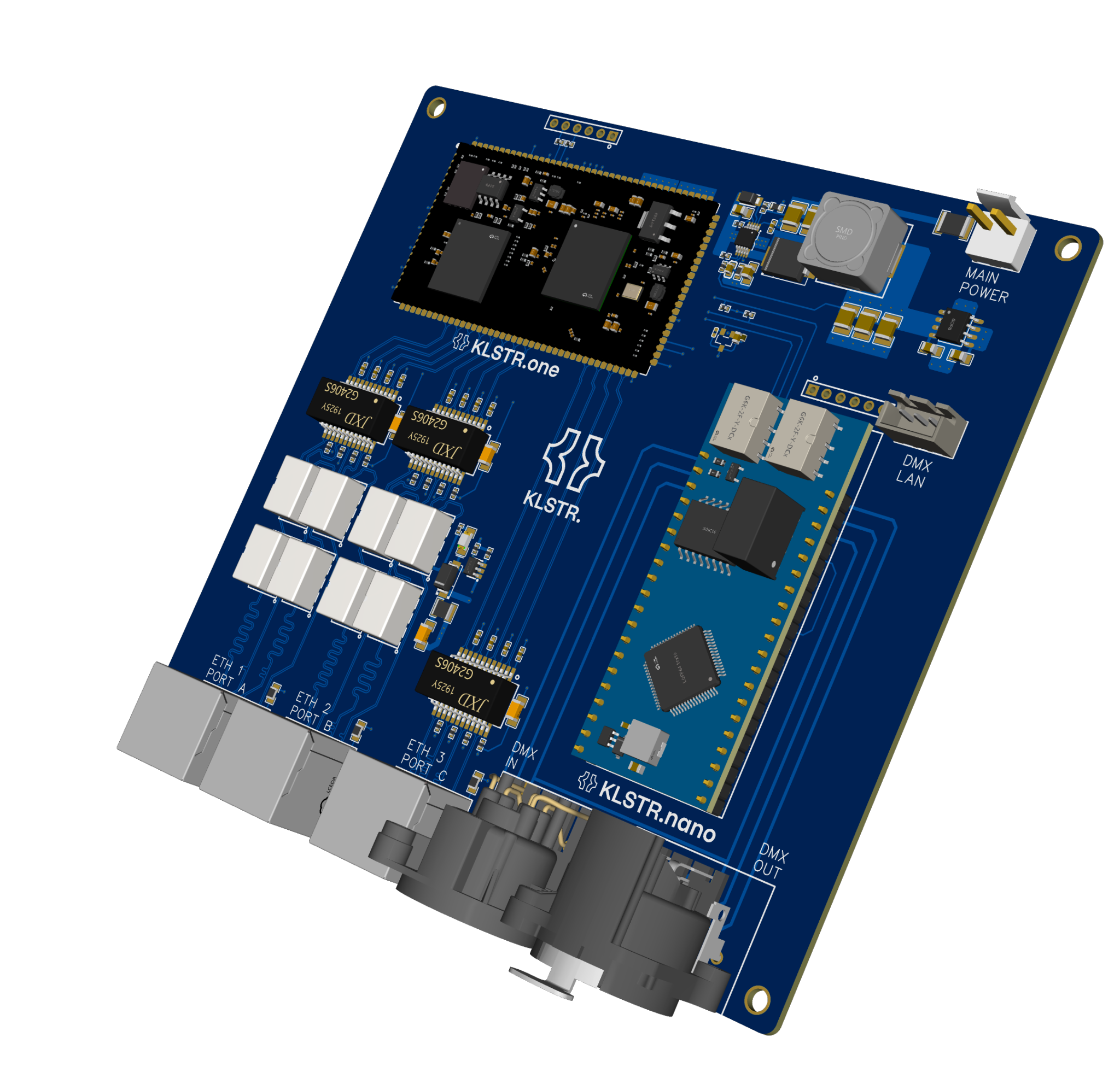

Reference board — 3D render

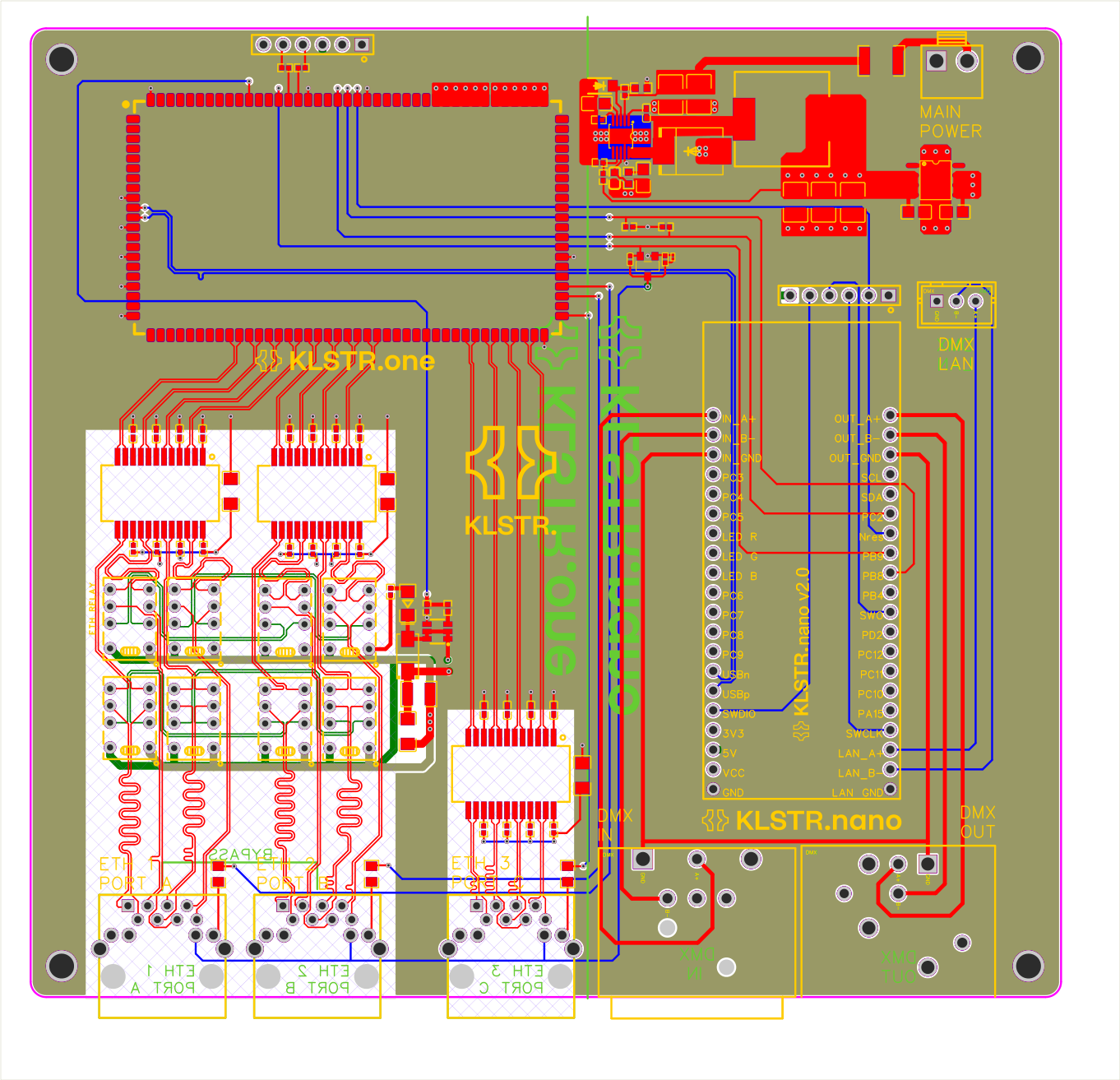

Reference board — PCB layout

Configuration

After wiring, provision each module according to its respective guide:

1. KLSTR.one Provisioning — claim, configure network/protocol settings
2. KLSTR.nano Provisioning — flash firmware, assign license

In KLSTR.ctrl, the dual-mode pair appears as a single logical device once both modules are online and the heartbeat is active. You can:

• Configure Art-Net/sACN settings on the KLSTR.one side
• Monitor DMX forwarding status on the KLSTR.nano side
• View combined device health (both modules’ firmware, temperature, uptime)

Failover behavior

Next steps

• Fleet Management — managing dual-mode pairs at scale
